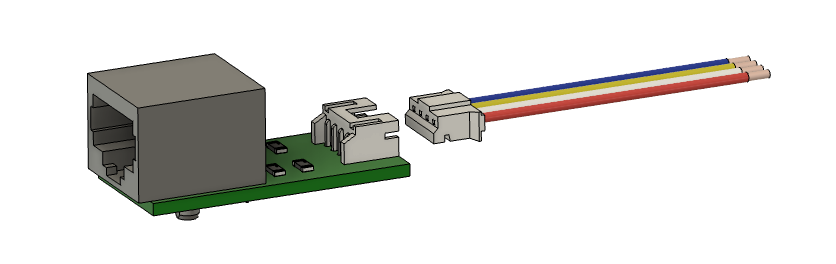

Product Image

Product Overview#

The X-PoE powered device serves as an intermediary between the X-PoE port and the connected LED lights or other devices, enabling power transmission and providing support for high power outputs. The PD takes the RJ45 connection from an X-PoE port and converts it to two separate channels, each with a pair of positive (+) and negative (-) conductors. These channels are used for powering LEDs or other compatible devices. The PD is capable of providing a total power output of up to 120W1 .

Confirm PD Configuration

The PDs can be utilized in both generic and customized configurations, tailored to accommodate specific load types. It is crucial to verify and install the appropriate PD before establishing a connection with an X-PoE lighting controller.


Dimensions 37.4 mm x 16.1 mm x 14.4 mm
(1.47 in x 0.6 in x 0.6 in)
*Not including connector and wires
Weight 0.01 kg
(0.02 lbs)
Interfaces (1) RJ45 X-PoE Input Port
(1) Output Connector with X-PoE Lighting LED +/- Wiring Pairs2
Power Input 48VDC to 57VDC Input From X-PoE Port3
Maximum Power Consumption 120W (at 57VDC) With Both Channels Fully Loaded At 100%4
Environment Operating Temp: 0°C to +40°C (32 to 104°F)
Storage Temp: -20 to +40°C (-4 to +158°F)
IP 68 Waterproof Rating
Warranty 5 Years

Maximum Power Output

Maximum output power is dependant upon the input voltage and the forward voltage of the connected light engine.

Top Panel#

The XPD-T2M-G top panel is shown below:

Front Panel

  1. X-PoE Power Input
  2. X-PoE LED Output Connector
  3. Output Wiring Assembly
  4. Channel 1 Output (+ / -)
  5. Channel 2 Output (+ / -)

  1. Maximum 120W per port with a 57V input, see D1.2 - Output Power Range

  2. 2 channels per port, 67W per channel with a 57V input.

  3. PD must be powered by an X-PoE lighting controller.

  4. X-PoE port must be configured properly.
