XS-108H-NC - DATA SHEET#

Product Image

Product Overview#

The XS-108H lighting controller represents a cutting-edge, high-performance solution, offering multiple channels for remote constant current/voltage LED driving. This controller stands out by providing 8 ports that can deliver controlled power in either IEEE standard (90W per port) or X-PoE (120W per port)1 configurations. Additionally, it incorporates 6 ports of 10/100 network switching capability, and supports various 3rd Party Control cards for seamless dimming and advanced lighting control integration. Powered by a 48V-57V low-voltage DC input, it ensures efficient and reliable operation within the lighting system, maintaining consistent and optimized power supply to the connected LED fixtures. With its advanced features, robust design, and network switching functionality, the XS-108H lighting controller sets the stage for exceptional performance and flexibility in contemporary lighting applications.

Specifications#

XS-108H-N SPECIFICATIONS
Dimensions 219 mm x 254.7 mm x 44 mm (without mounting brackets)
8.6 in x 10 in x 1.7 in (without mounting brackets)
Weight 1.9 kg (without mounting brackets)
4.2 lb (without mounting brackets)
Interfaces (2) UP/DOWN Link RJ45 Ports
(8) IEEE 802.3bt PoE++ / 2-CH X-PoE Lighting RJ45 Ports3
(1) DC Power Input Port2
(1) Aux. Dry Contact Input Port
(2) Pin-Hole Operation/Reset Buttons
3rd Party Control Interface (1) 3rd Party Control RJ45 Port8
Network Switching 10/100 Mbps Network Switching on Ports 1 through 6
Power Input 48VDC to 57VDC Input
100W - 1,000W Supply Recommended4
Maximum Power Consumption 1,000W with all channels fully loaded at 100%5
Power Metering Accuracy >95%
Environment Operating Temp: 0°C to +40°C (32 to 104°F)
Storage Temp: -20 to +40°C (-4 to +158°F)
Humidity: 10% to 90% (non-condensing)
Certifications UL 62368-1, UL 2108-1, CSA C22.2#62368-1 *pending
Warranty 5 Years
PORT SPECIFICATIONS
Port Mode: X-PoE Max. 120W/Port (at 57VDC) Constant Current/Voltage Output6
Port Mode: IEEE PoE Max. 90W IEEE 802.3bt PoE++/Port

Power Output

Maximum output power is dependant upon the input voltage and the forward voltage of the connected light engine.

Front Panel#

The XS-108H-N front panel is shown below:

Front Panel

  1. System Reset Button
  2. System Status LED
  3. Programming Override Button7
  4. Port X-PoE Status LEDs
  5. Ethernet Uplink RJ45
  6. Unused
  7. IEEE/X-PoE Lighting Ports
    • 10/100 Mbps Network Switching on Ports 1 through 6
  8. Coupling Bracket Mounting Holes
  9. 3rd Party Control Port
  10. 3rd Party Control Status LEDs

Rear Panel#

The XS-108H-N rear panel is shown below:

Rear Panel

  1. Power Input (48VDC to 57VDC)
  2. System Power LED
  3. Programming Override Input (dry contact closure)
  4. Coupling Bracket Mounting Holes
  5. Security Slot

LED Descriptions#

Front Panel#

System Status LED (#2)
n/a OFF The system processor is not receiving adequate power
GREEN ON The unit is powered on and operating normally
GREEN FLASHING The unit is powered on and operating normally without an internet connection
ORANGE ON The unit is undergoing a system update
ORANGE FLASHING The unit is booting or rebooting
RED ON A system malfunction has been detected
RED FLASHING The programming override has been engaged
Port Status LEDs (#4)
WHITE FLASHING The port is not configured and is not providing power
WHITE ON The port is configured and is not providing power
GREEN FLASHING The port is not configured and is providing power
GREEN ON The port is configured and is providing power
ORANGE ON The port is providing power to an IEEE load
PURPLE FLASHING The port is in constant voltage discovery mode
RED ON An error has been detected on the port
RJ45 Connector LEDs
ORANGE (Left) OFF No network activity on the port
ORANGE (Left) FLASHING Network activity on the port
GREEN (Right) OFF No network connection is established on the port
GREEN (Right) ON A stable network connection is established on the port

RJ45 LEDs

The LEDs on the RJ54 ports only function for the uplink port at this time.

3rd Party Control LEDs (#10)
n/a OFF The 3rd Party Control Card is not operational
GREEN ON The 3rd Party Control Card is powered on and operating normally
RED ON An error has been detected on the 3rd Party Control Card

Rear Panel#

System Power LED (#2)
n/a OFF The unit is not receiving adequate power
GREEN ON The unit is powered on and operating normally
RED ON A system malfunction has been detected

Button Operation#

Reset Button (#1)
PRESS 2 TIMES Restart the system processes
PRESS 5 TIMES Restart the unit
PRESS 7 TIMES Reset network settings
PRESS 10 TIMES Factory default all settings

3rd Party Control Options#

Part Number Description Function
-010 0-10V Control Card Provides (1) 0-10V input to control all channels on the X-PoE lighting controller
0-10V Control Card#

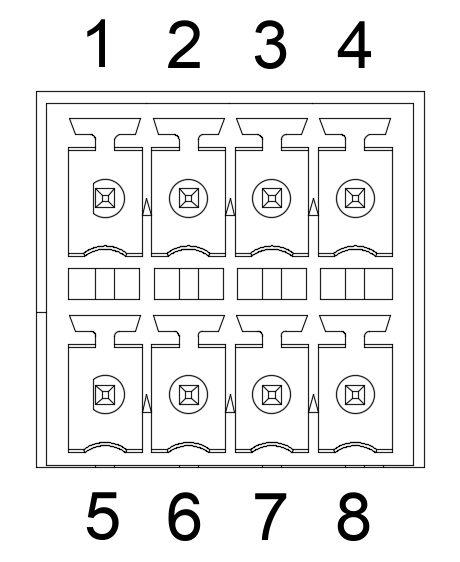

This card provides a synchronized 0-10V input for unified control of all channels on the X-PoE lighting controller, drawing 0.3mA of current. It also provides a 24VDC auxiliary output. The following table outlines the RJ45 pin assignments for the 0-10V control interface:

RJ45 PINOUT Function
PIN 2 0-10Vin
PIN 6 24V+ Output
PIN 7 Ground
PIN 8 Ground

Override Input Description#

Engaging (or disengaging, based on the configuration) the input will activate the programming override. If the input remains deactivated for longer than 5 seconds, the override will be disengaged. By default, when the programming override is activated, all loads will be set to 100%. Once the override is disengaged, the loads will revert to their previous states. This default behavior can be customized in the configuration options:

  • Activate on Close:

    • Engages the programming override when the input circuit is closed.
    • Disengages the override if the input remains open for more than 5 seconds.
  • Activate on Open:

    • Engages the programming override when the input circuit is opened.
    • Disengages the override if the input remains closed for more than 5 seconds.
  • Override Level Settings for Each Channel:

    • Each channel can have individual override level settings, allowing you to customize the load behavior during the programming override. Adjust the load percentage for each channel as needed.

For more information, see the programming override section of the install guide.


  1. Maximum 120W per port with a 57V input, see D1.2 - Output Power Range

  2. For more information, see D1.1 - Input Power Range

  3. 2 channels per port, 67W per channel with a 57V input.

  4. No Internal Power Supply.

  5. External Power Supply Must Be Rated For Total Lighting Load.

  6. (2) 67W (at 57VDC) Dimmable Channels/Port, Available On All Ports.

  7. The programming override button is currently not in use. Use the Override Input on the rear of the unit.

  8. 3rd Party Control port functionality depends on the control card specified.
